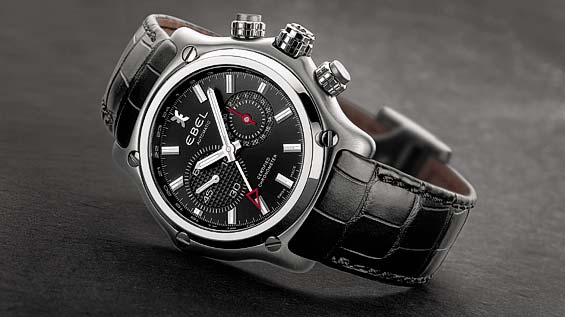

EBEL CALIBER 137 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exclusive Ebel movement developed, assembled and tested in Ebel workshop. Chronometer certified by the COSC. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Functions Display | : | Time of day: | . Hours . Minutes . Small seconds at 9 o'clock Chronograph functions: . Hour counter at 6 o'clock . Minute counter at 3 o'clock . Seconds in the center Calendaraperture at 4.30Chronograph | : | Shuttle chronograph mechanism | Date Module | : | Semi-instantaneous action date disk | Fast date correction Components Jewels | : | 26 rubies and 1 zirconia | Number of components | : | 322 | Dimensions Diameter | : | 31.00 mm | Thickness | : | 6.40 mm | Performances Frequency | : | 28,800 vibrations per hour (4 Hz) | Inertia of the balance | : | 10 mg*cm2 | Winding | : | Automatic, bidirectional | Rotor on ball bearing Power reserve | : | Minimum 48 hours | Rating performance | of chronometer version : | -4 to +6 sec./day (100% COSC certified) | Amplitude when fully wound | : | 270° | Amplitude after 24 hours | : | 230° | Angle of lift of the pallets | : | 53° | |

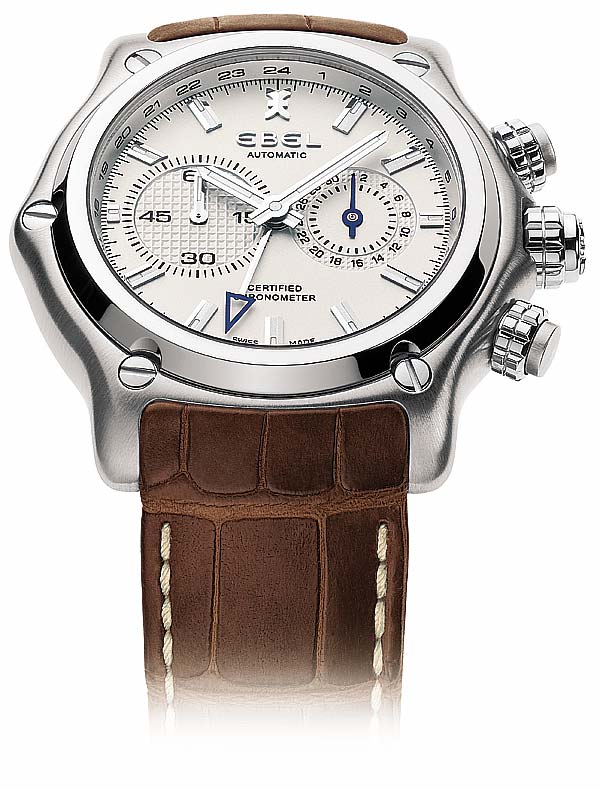

EBEL CALIBER 240 | ||
Exclusive Ebel movement developed, assembled and tested in Ebel workshop. Chronometer certified by the COSC. | ||
Functions | ||
Display | : | Time of day: . Hours . Minutes . Small seconds at 9 o'clock GMT functions: . GMT 24 hours Date counter at 3 o'clock |
Date module | : | Semi-instantaneous action date Fast date correction |
Components | ||
Number of components | : | 193 |
Jewels | : | 22 rubies and 1 zirconia |
Dimensions | ||
Diameter | : | 31.00 mm |
Thickness | : | 6.70 mm |
Performances | ||
Frequency | : | 28,800 vibrations per hour (4 Hz) |
Inertia of the balance | : | 10 mg*cm2 |
Winding | : | Automatic, bidirectional Rotor on ball bearing |
Power reserve | : | Minimum 48 hours |
Rating performance of chronometer version | : | -4 to +6 sec./day (100% COSC certified) |
Amplitude when fully wound | : | 270° |
Amplitude after 24 hours | : | 230° |
Angle of lift of the pallets | : | 53° |

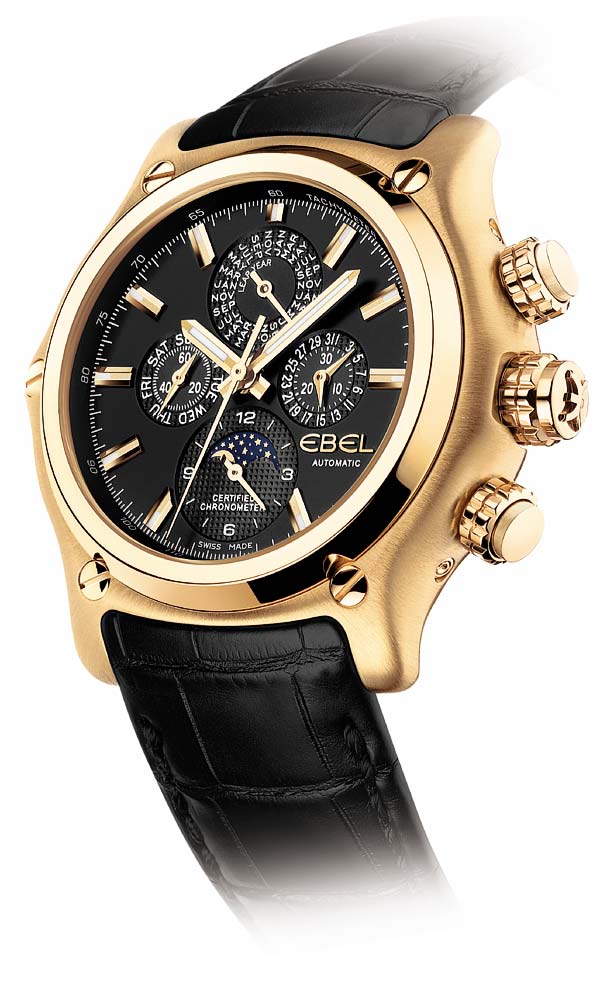

EBEL CALIBER 288 | ||
Exclusive Ebel movement developed, assembled and tested in Ebel workshop. Chronometer certified by the COSC before and after assembly of the QP module | ||
Functions | ||
Display | : | . Hours . Minutes . Small seconds and 7 day counter at 9 o'clock . Chronograph hour and astronomical moon counter at 6 o'clock . Chronograph minute and 31 day counter at 3 o'clock . 48 months and year at 12 o'clock . Chronograph seconds in the center |
Chronograph | : | Shuttle chronograph mechanism |
Date Module | : | Perpetual calendar Semi-instantaneous action date Fast date correction |
Components | ||
Jewels | : | 26 rubies and 1 zirconia |
Number of components | : | 436 |
Dimensions | ||
Diameter | : | 31.00 mm |
Thickness | : | 8.00 mm |
Performances | ||
Frequency | : | 28,800 vibrations per hour (4 Hz) |
Inertia of the balance | : | 10 mg*cm2 |
Winding | : | Automatic, bidirectional Rotor on ball bearing |
Power reserve | : | Minimum 48 hours |
Rating performance of chronometer version | : | -4 to +6 sec./day (100% COSC certified) |
Amplitude when fully wound | : | 270° |
Amplitude after 24 hours | : | 230° |
Angle of lift of the pallets | : | 53° |
